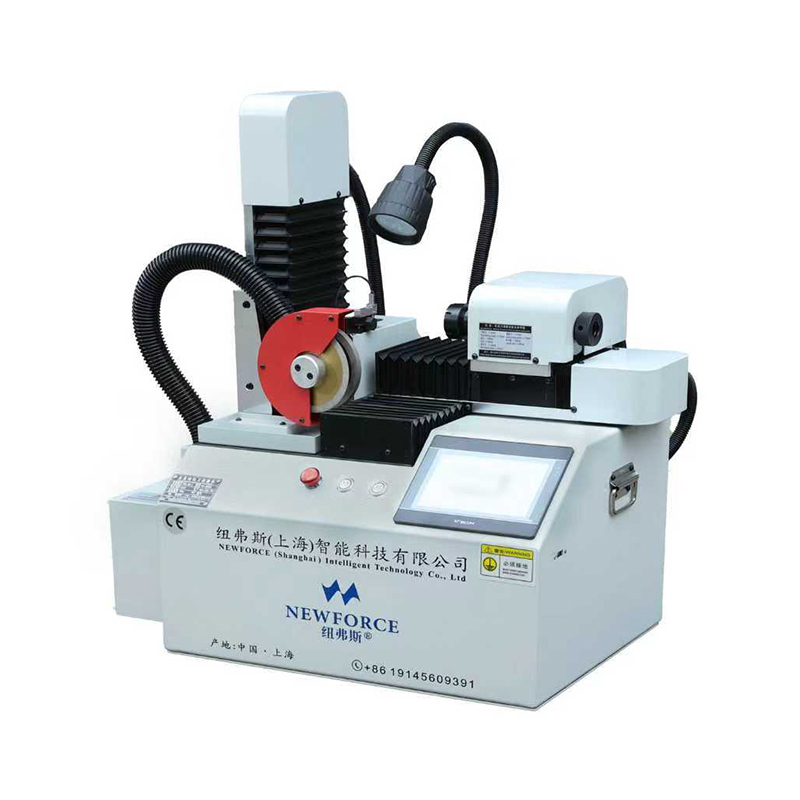

End Mill Grinder Tool Grinder Tool Reconditioning End Mill Sharpener Carbide End Mill Grinder

Product Description

Specification	Particulars
Milling Cutter	3mm~20mm 2、3、4 Blade (Adjustable inner groove angle)
Drill Bit	3mm~18mm 2 Blade（120°~145°）
Ball Cutter	3mm~16mm 2Blade
Round-nose Knife	3mm~20mm2、3、4 Blade
Chamfering Knife	3mm~14mm 2 Blade（75°~120°）
Applicable Materials	Tungsten steel, alloy, high-speed steel, ceramics, graphite
Tool setting Device	Simple alignment block (precision 0.1)
Overall Dimensions	580mm400mm770mm
Net weight of equipment	75KG
Total Power	1.5KW
Speed of Grinding Wheel	2500~3000
Knife Sharpening Efficiency	1~2min per tube
Grinding wheel specification	125mm10mm32mm/125mm1032*43V
Grinding wheel Lifetime	800~1000 6mm milling cutters
Dust Absorption	Built-in vacuum cleaner
Selective Assembly	Optional probe

FEATURES

1. It can automatically grind 2,3, and 4 hard alloy and high-speed steed end mils.

2. The grinding milling cutter is located at the cutting edge angle, front oblique angle, and rear oblique angle.

3. Easy to operate, anyone can complete grinding within I minute.

4. The width of the first back corner of the milling cutter can be adjusted to accommodate cutting materials of different hardness.

5. After grinding, the milling cutter standard should be consistent with the new cutter, and the high precision of the blade should be within 0.0I mm.
